Standalone machines or fully integrated lines. Each one can be supplied on its own or specced to work alongside the rest — installed and supported by our team.
CNC routers for cutting, routing and engraving panels — from a single-spindle machine for a growing shop through to a linear auto-tool-change router that runs full nesting jobs for a production line. Water-cooled and air-cooled spindles, Taiwan linear guides and rack-and-pinion drive for accuracy at speed.
| Processing size | 1300 × 2500 × 180 mm |
| Spindle | 3.7 kW, water-cooled |
| Control | NcStudio |
| Guide rails | Taiwan TRV |

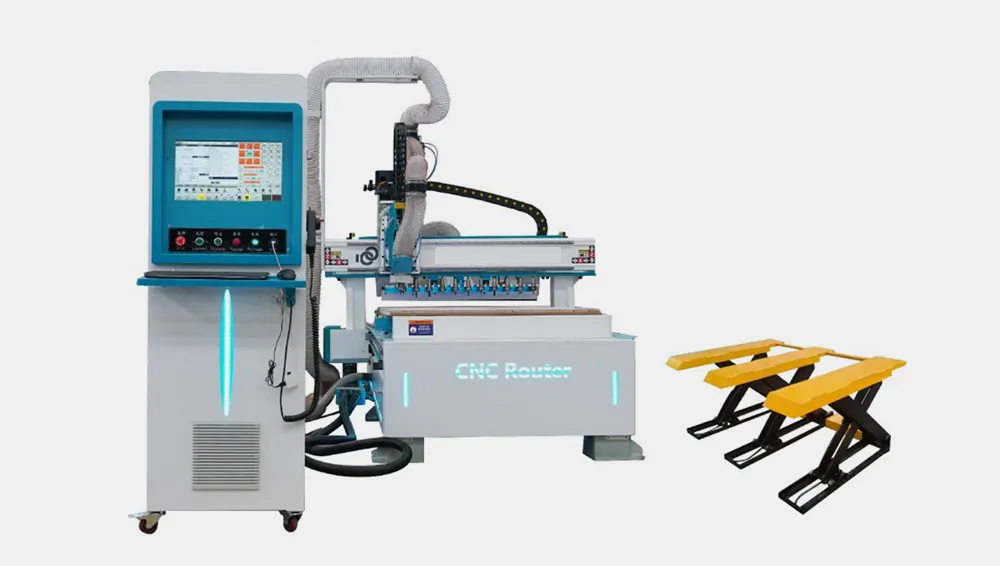

| Spindle | 9 kW, air-cooled ATC |
| Tool changer | 12-tool inline |
| Control | Taiwan Baoyuan MW2200 |
| Guide rails | Taiwan Hongtai |

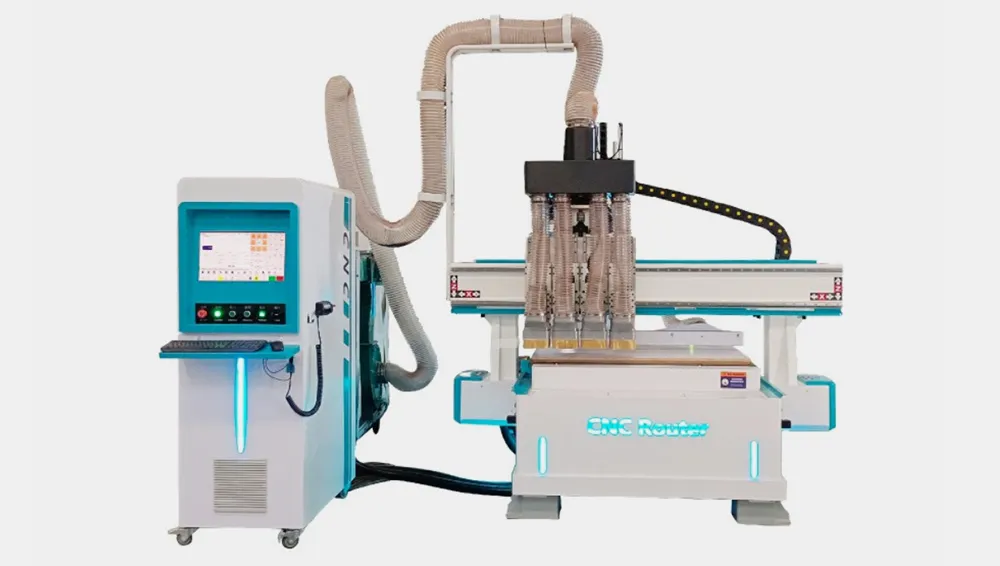

| Spindles | 4 switching heads |
| Spindle power | 6 kW, air-cooled |
| Control | Baoyuan system |
| Guide rails | Taiwan Hongtai |
Electronic beam (panel) saws for accurate, repeatable cut-to-size on stacks of board — the workhorse of a high-volume cutting department where straight, square panels matter. Programmable patterns, automatic pusher and a scoring blade for chip-free edges on both faces.
| Max cutting length | 3280 mm |
| Main saw blade | 350 mm · 4800 rpm |
| Scoring saw | 6500 rpm |
| Carriage feed (stepless) | 9–120 m/min |
| Total power | 380 V · 50 Hz |
| Weight | 5500 kg |

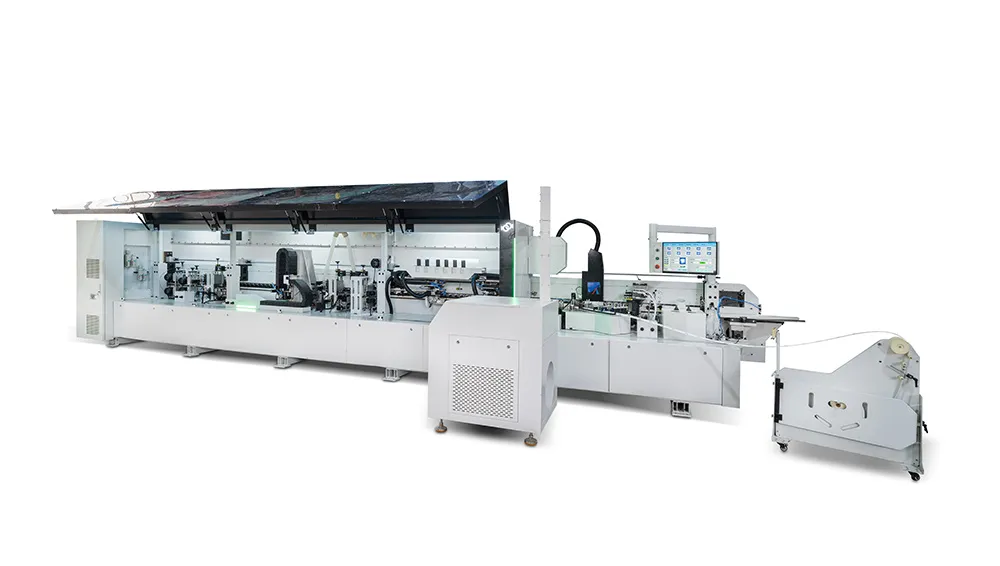

Fully automatic edge banders that apply PVC, ABS or acrylic edging with a seamless, durable bond — from EVA and PUR gluing to laser edging for an invisible zero-joint finish. We supply single machines through to full-servo laser lines, each a complete inline process from pre-milling to final buffing.
| Sheet thickness | 9–60 mm |
| Sealing width | 12–58 mm |
| Feed rate | 18–36 m/min |
| Laser | 3 kW matrix laser |
| Total power | 29 kW · 380 V · 50 Hz |
| Sheet thickness | 9–60 mm |
| Sealing width | 12–58 mm |
| Feed rate | 20–35 m/min |
| Laser | 3 kW rectangular laser |
| Total power | 48 kW · 380 V · 50 Hz |

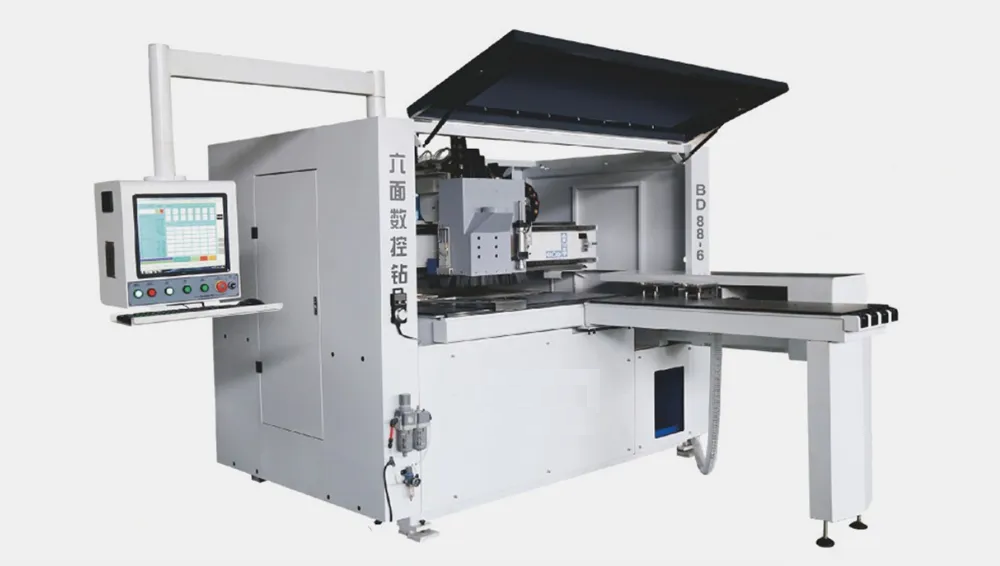

From six-sided CNC drilling to intelligent drilling and milling centres, for fast and precise hole patterns, dowels and hardware fittings — the difference between panels that assemble cleanly and ones that fight you. Multiple drilling packs and high-speed manipulators handle full panels in a single pass.
| Plate length | 200–2440 mm |
| Plate width | 50–1200 mm |
| Plate thickness | 16–50 mm |
| Manipulator speed | 130 m/min |
| Drilling packs | 3 · Taiwan Protean |
| Max sheet width | 1200 mm |
| Max sheet length | Unlimited |
| Vertical drill axes | 12 |
| Drill speed | 4500 rpm |
| Total power | 12 kW · 380 V · 50 Hz |
Precision sliding-table panel saws for workshops, short runs and custom joinery. A dependable entry point for a growing shop, or a versatile complement to a larger line.
A fully integrated, automated panel furniture line — cutting, labeling, edge banding and six-sided drilling linked by robotic arms, gantry manipulators and buffer warehouses, so board flows from raw sheet to finished panel with minimal handling. We configure, supply, install and commission the whole line.
Tell us your output targets and floor space — we'll recommend a setup and quote it.
